- Size: 9099*3200*3665
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG989
- Weight: 5500.000 kg
Specification:
Item | LG989 | Engine | Volvo D13 |
Transmission | HT22 0 transmission | Bucket Capacity ( m3) | 4.2 |
Axle | SDLG Axle | Rated Load (kg) | 6.5 |
Hydraulic System | Pilot Control | Max Dumping Height (mm) | 3600 |
Working Arm | Standard | Cycle Time (s) | ≤ 12.4 |
Control Valve | 2 Valve | Min Steering Radius (mm) | 7652 |
Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥197 |
Cab | Standard | Dimension (L*W*H) (mm) | 9099*3200*3665 |
Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 23640 |
Quick Coupler | Yes | Attachment | Optional |
Description:

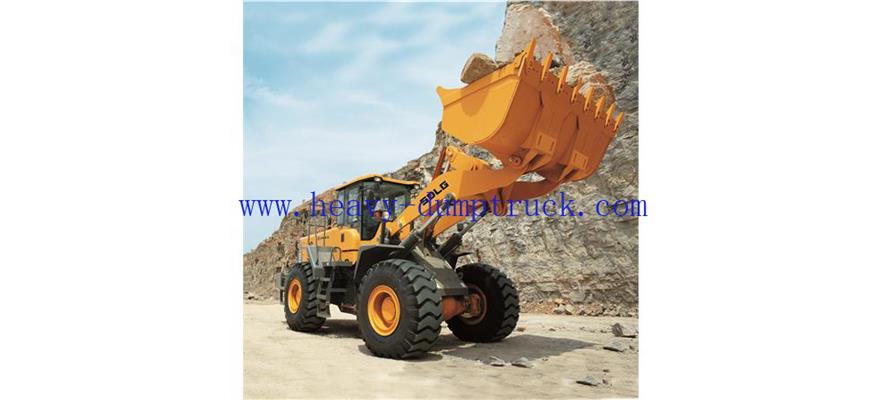

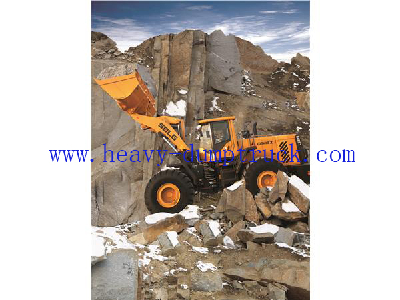

LG989 is a luxury and comfortable loader for loading and unloading heavy-load materials with large breakout force, comfortable operation condition, high operating efficiency and is widely used in building site, mining wharf and etc.
Advantages:
1. The centralized lubrication system is supplied as standard, achieving timing, located and rationed lubrication, and thus reducing pin shaft wear and grease consumption.
2. It is applied with the HT20 axis-fixed electro-hydraulic transmission with four reverse gear shifts, which has the forced gear down function (KD key) and ensures easy control and high efficiency.
3. The complete machine is applied with the full-hydraulic brake, featuring smooth and reliable braking and good safety.
4. It is applied with the box-type cooling system of independent heat dissipation of SDLG’s patented technology, and the controller automatically adjusts the cooling fan speed depending on the water temperature, and the inter air temperature of the inter cooler, which ensures energy efficiency.
