- Size: 8700*3230*3665
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG978
- Weight: 5300.000 kg
Specification:
Item | LG978 | Engine | W eichai |
Transmission | SDLG gearbox | Bucket Capacity ( m3) | 3.5 |
Axle | SDLG Axle | Rated Load (kg) | 7.0 |
Hydraulic System | Pilot Control | Max Dumping Height (mm) | 3365 |
Working Arm | Standard | Cycle Time (s) | ≤ 11.7 |
Control Valve | 2 Valve | Min Steering Radius (mm) | 7433 |
Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥249 |
Cab | Standard | Dimension (L*W*H) (mm) | 8700*3230*3665 |
Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 23579 |
Quick Coupler | Yes | Attachment | Optional |
Description:

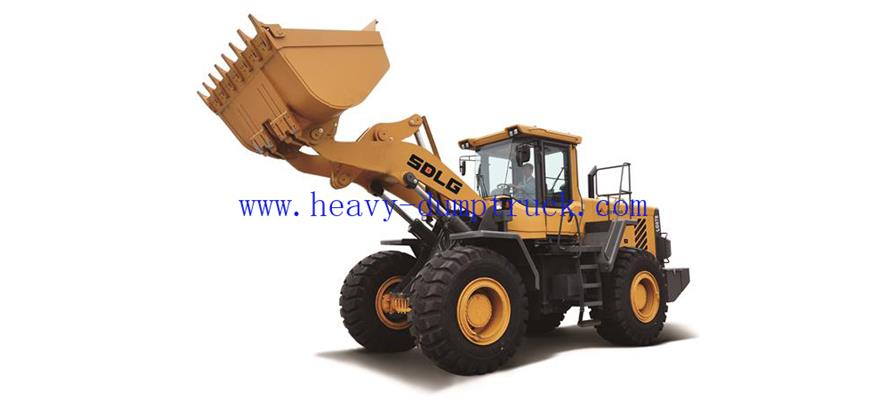

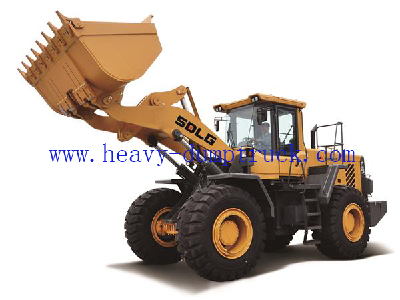

LG978 is a luxury and comfortable loader for loading and unloading heavy-load materials with large breakout force, comfortable operation condition, high operating efficiency and is widely used in building site, mining wharf and etc.
Advantages:
1. SDLG specially-imported HT220 axis-fixed electric-liquid shift transmission case is used, with four point gear positions and four rear gear positions and is flexible and high efficient, SDLG reinforced drive axle is configured. Full hydraulic travel braking system is used, with stable and reliable braking property and is convenient for repair and maintenance.
2. It is equipped with boxed independent radiating and cooling system of SDLG patent and hydraulic motor-driven fan. The fan speed can be automatically adjusted as per the system temperature, which provides the system with reliable energy saving property and high cooling efficiency.
3. The entire machine uses special NVH technique of SDLG and three-stage damping system, new luxury mechanically-suspended sea, better damping performance, which makes it comfort to operate for driver.
4. FOPS/ROPS cab is equipped, which has wide vision, large operation space, fully-covered cab internal trimmings, good sealing performance, low interior noise, interior and exterior circulated air conditioning and is safe and comfortable.
- Size: 8700*3230*3665
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG978
- Weight: 5300.000 kg
