- Size: 8993*3322*3665
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG979
- Weight: 5300.000 kg
Specification:
Item | LG979 | Engine | SDLG Engine |
Transmission | HT221 transmission | Bucket Capacity ( m3) | 4.2 |
Axle | ZF MT-L3105 | Rated Load (kg) | 7.0 |
Hydraulic System | Pilot Control | Max Dumping Height (mm) | 1952 |
Working Arm | Standard | Cycle Time (s) | ≤ 11.7 |
Control Valve | 2 Valve | Min Steering Radius (mm) | --- |
Brake System | Dual Brake Petal | Max Breakout Force (KN) | --- |
Cab | Standard | Dimension (L*W*H) (mm) | 8993*3322*3665 |
Cooling/Heating System | Air Conditioner | Operating Weight (kg) | --- |
Quick Coupler | Yes | Attachment | Optional |
Description:

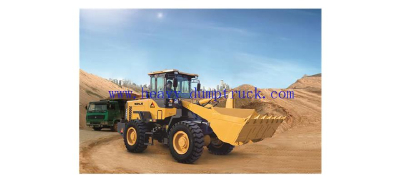

LG979 is a luxury and comfortable loader for loading and unloading heavy-load materials with large breakout force, comfortable operation condition, high operating efficiency and is widely used in building site, mining wharf and etc.
Advantages:
1. SDLG specially-improted HT220 axis-fixed electric-liquid shift transmission case is used, with four point gear positions and four rear gear positions and is flexible and high efficient, SDLG reinforced drive axle is configured. Full hydraulic travel braking system is used, with stable and reliable braking property and is convenient for repair and maintenance.
2. It is equipped with boxed independent radiating and cooling system of SDLG patent and hydraulic motor-driven fan. The fan speed can be automatically adjusted as per the system temperature, which provides the system with reliable energy saving property and high cooling efficiency.
3. The self-developed digitized combination dashboard of SDLG
is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
4. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties. Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate. Hydraulic pipeline is double sealed, with high reliability.
- Size: 8993*3322*3665
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG979
- Weight: 5300.000 kg
