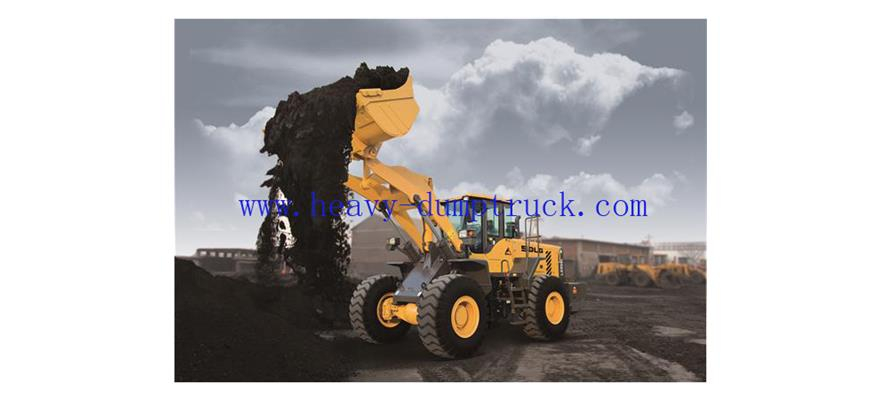

SDLG wheel loader LG956L FOPS and ROPS cabin and rock bucket 2.0m3

SDLG wheel loader LG956L FOPS and ROPS cabin and rock bucket 2.0m3

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 100 Units per Month
  • Port: Tianjin Port / Qingdao Port
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:1972-08-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  7897*3060*3382
  • Place of Origin:  China
  • Brand Name:  SDLG
  • Model Number:  LG956L
  • Weight: 5000.000 kg

Specification:



Item

LG956L

Engine

Cummins

Transmission

SDLG  gearbox

Bucket Capacity ( m3)

2.0

Axle

Heavy duty

Rated Load (kg)

5 000

Hydraulic System

Pilot Control

Max Dumping Height (mm)

32 81

Working Arm

Standard

Cycle Time (s)

11.3

Control Valve

3 Valve

Min Steering Radius (mm)

6 603

Brake System

Dual Brake Petal

Max Breakout Force (KN)

211

Cab

ROPS FOPS

Dimension (L*W*H) (mm)

7 897*3060*3382

Cooling/Heating System

Standard

Operating Weight (kg)

1 6900

Quick Coupler

Yes

Attachment

Optional



Description:



LG956L is a mining and excavating typed loader for loading and unloading hard materials, with long axle base, large breakout force. It is customized for mine and heavy-load operating conditions and is widely used in building site, aggregate towms construction and etc



Advantages:



1. The cooling system is designed with area-enlarged radiator, optimized inlet and outlet air channels to effectively decrease the temperature of water for engine and the temperature of oil for hydraulic system which provides the entire machine with high cooling efficiency.



2. The entire machine uses special NVH technique of SDLG and optimized three-stage damping system, new damping seat, better damping performance, which makes it more comfort to operate for driver.

3. It adopts 20-ply rating tyre exclusively used for mine that is of larger bearing capacity and good abrasion performance.





4. Power shift planetary transmission case of mature SDLG technology is used, with two front gear positions and one rear gear position and long service life and is simple to operate. SDLG reinforced drive axle is configured with large bearing capacity and high reliability.

  • Size:  7897*3060*3382
  • Place of Origin:  China
  • Brand Name:  SDLG
  • Model Number:  LG956L
  • Weight: 5000.000 kg
