- Size: 8330*3500*3380
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG968
- Weight: 5200.000 kg
Specification:
Item | LG9 68 | Engine | Weichai WD10G240E21 |
Transmission | ZF Gearbox LG axle | Bucket Capacity ( m3) | 4.5 |
Axle | SDLG A501A | Rated Load (kg) | 6000 |
Hydraulic System | Pilot Control single levers | Max Dumping Height (mm) | 3100 |
Working Arm | Lengthen | Cycle Time (s) | ≤ 12 |
Control Valve | 3 Valve | Min Steering Radius (mm) | 6721 |
Brake System | Dual Brake Pe dall | Max Breakout Force (KN) | ≥169 |
Cab | Standard | Dimension (L*W*H) (mm) | 8418*3300*3382 |
Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 18832 |
Quick Coupler | No | Attachment | LM bucket |
Description:

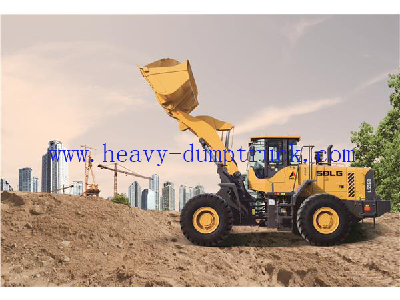

The LG968 is luxurious loader for heavy materials handing, featuring large breakout force, comfortable operation, high efficiency and good adaptability to heavy operating conditions, and widely used in such operating conditions as construction sites, mining and urban construction.
Advantages:
1.The self-developed digitized combined panel of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of the complete machine, which ensures convenient inspection and maintenance and high reliability of the electrical components.
2.The front and rear frames have been subjected to the finite element optimization design and passed the 200,000 times of fatigue intensifying tests, featuring high strength, long service life. The lengthened wheelbase and enlarged counterweight ensure more stable traveling of the complete machine.
3.The optimal design is conducted to the working device, which ensures
large breakout force and large full-load coefficient various working aids are optionally available to satisfy the diverse customer needs.
4.The ZF fixed shaft electro-hydraulic shift transmission is reliable, and flexible and easy to operate, the strengthened drive axle offers large bearing capacity and high reliability.
