- Size: 7753*3024*3423
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG953
- Weight: 4900.000 kg
Specification:
Item | LG9 53 | Engine | Weichai |
Transmission | Fixed shaft gearbox | Bucket Capacity ( m3) | 3.0 |
Axle | Heavy duty | Rated Load (kg) | 5 000 |
Hydraulic System | Pilot Control | Max Dumping Height (mm) | 3 050 |
Working Arm | Standard | Cycle Time (s) | ≤ 10.2 |
Control Valve | 3 Valve | Min Steering Radius (mm) | 6 888 |
Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥ 92 |
Cab | Standard | Dimension (L*W*H) (mm) | 7 753 * 3024 *3 423 |
Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 1 660 0 |
Quick Coupler | Yes | Attachment | Optional |
Description:

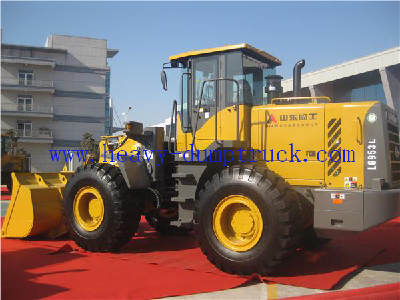

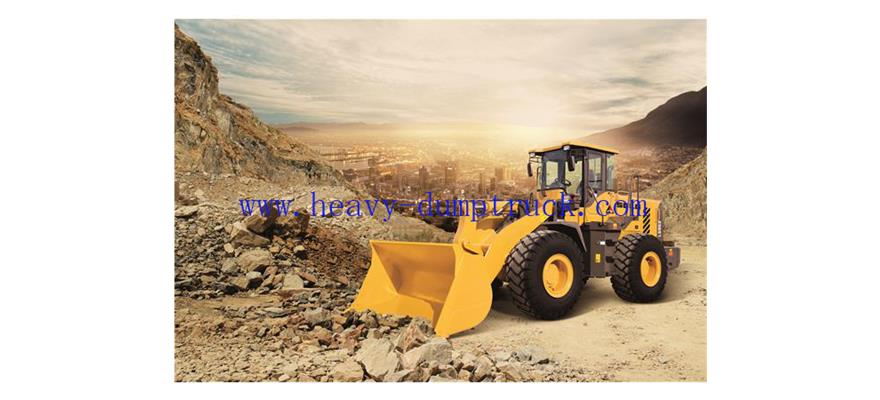

LG953, a long-wheelbase loader for loading bulk materials and hard materials, features large breakout force and tipping load enjoyed by long-wheelbase loader as well as the flexibility and small turning angle enjoyed by short-wheelbase loader, and is widely applied in areas like sand plants, ports, construction sites, mines etc.
Advantages:
1. SDLG 5T planetary transmission case is used, with two front gear positions and one rear gear position. It is light and easy to operate, with long service life; Single-stage four-element twin-turbo hydraulic torque converter is provided, with large torque ratio and high transmission efficiency; Reinforced drive axle is configured, with large bearing capacity and high reliability.
2. Load-sensing full hydraulic steering system and pilot-control working device hydraulic system are used, with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
3. New steel structure cab is adopted, which has wide vision, larger operation space, fully-covered cab internal trimmings, good sealing performance and comfortable driving environment; The air conditioner and ROPS&FOPS cab can be installed optionally, which ensures good comfort.
4. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient
of fullness and high reliability.
