- Size: 7345*2790*3240
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG946L
- Weight: 4800.000 kg
Specification:
Item | LG9 46L | Engine | Weichai Deutz Engine |
Transmission | LG A307A Planetary power shift +Forward I I /Reverse I | Bucket Capacity ( m3) | 2.0 |
Axle | SDLG+A504 | Rated Load (kg) | 4000 |
Hydraulic System | Pilot Control | Max Dumping Height (mm) | 2951 |
Working Arm | Standard | Cycle Time (s) | 10.2 |
Control Valve | 2 Valve | Min Steering Radius (mm) | 6147 |
Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥143 |
Cab | Standard | Dimension (L*W*H) (mm) | 7345 *2 790 * 3240 |
Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 13092 |
Quick Coupler | No | Attachment | Rock bucket |
Description:

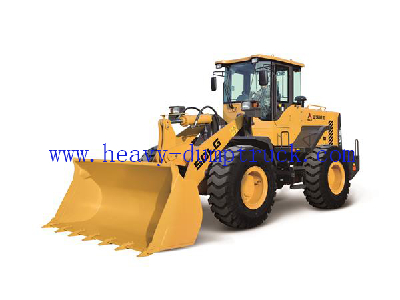

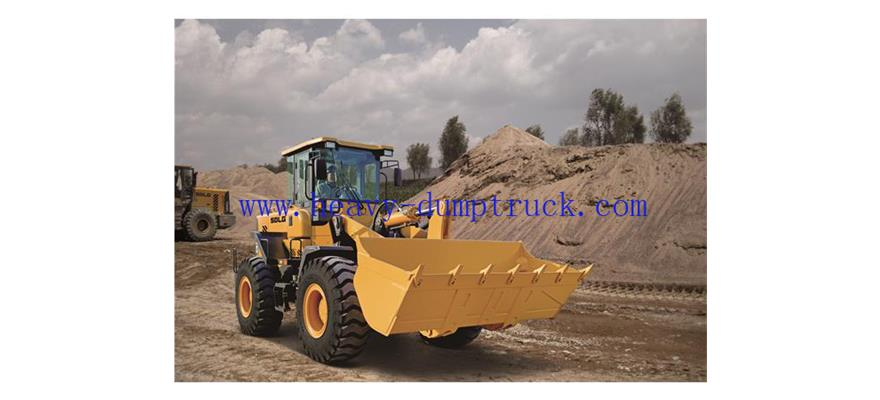

LG946L is a high-end loader for loading and unloading loose materials, with reliability and multiple purpose, and is widely used in building site, small mining, aggregate plant and municipal construction and etc.
Advantages:
1. ZF axis-fixed electric-liquid shift transmission case is used, with four front gear positions and three rear gear positions, high transmission efficiency and is also comfort to operate. SDLG reinforced drive axle is configured, with reasonable front/rear-axle load distribution, large bearing capacity, high reliability and good stability for entire machine.
2. FOPS/ROPS cab is equipped, which has wide vision, fully-covered cab internal trimmings, good sealing performance, up-to-ISO-standard air conditioning and is safe and comfortable. Common cab is optional.
3. The self-developed digitized steeping dashboard of SDLG is adopted, which ensures high human-machine interaction, the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
4. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability. New shift bracket of SDLG patent is provided for auxiliary appliance up to ISO international standard.
