- Size: 7450*2520*3234
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG938L
- Weight: 4800.000 kg
Specification:
Item | LG9 38L | Engine | TCD 6.1L6 |
Transmission | ZF 4WG158+Forward IV/Reverse III | Bucket Capacity ( m3) | 1 .8 |
Axle | SDLG A507A | Rated Load (kg) | 3000 |
Hydraulic System | Pilot Control | Max Dumping Height (mm) | 3028 |
Working Arm | Standard | Cycle Time (s) | ≤ 10.34 |
Control Valve | 3 Valve | Min Steering Radius (mm) | / |
Brake System | Dual Brake Petal | Max Breakout Force (KN) | / |
Cab | Standard | Dimension (L*W*H) (mm) | 7450 *2 520 * 3234 |
Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 11200 |
Quick Coupler | Yes | Attachment | Optional |
Description:

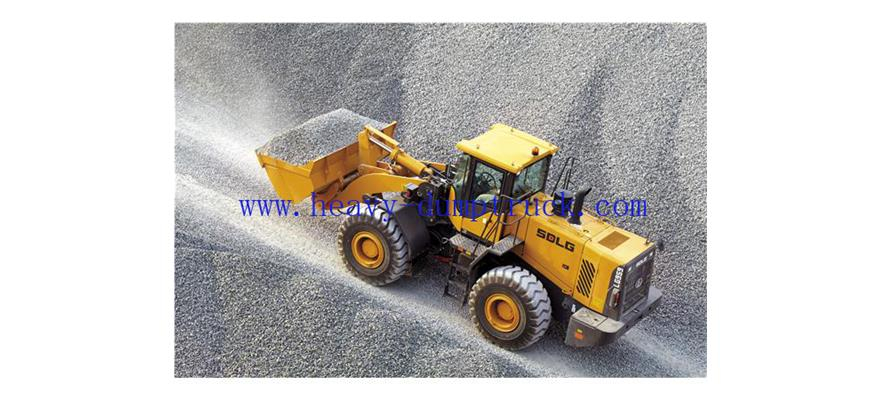

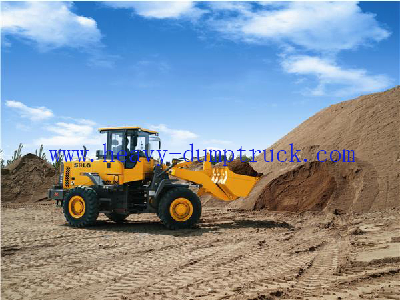

LG938L is a high-end loader for loading and unloading loose materials, with reliability and multiple purpose, and is widely used in building site, small mining, aggregate plant and municipal construction and etc.
Advantages:
1. FOPS/ROPS cab is equipped, which has wide vision, fully-covered cab internal trimmings, good sealing performance, up-to-ISO-standard air conditioning and is safe and comfortable. Common cab is optional.
2. The self-developed digitized steeping dashboard of SDLG is adopted, which ensures high human-machine interaction, the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
3. Load-sensing full hydraulic steering system is used, with emergency steering function and energy-saving and high-efficient properties; Pilot-control working device hydraulic system is used, with good operating efficiency and is light and easy to operate; Full hydraulic braking system is used, with stable and reliable braking property.
4. It is provided with optimized front and rear frame design and reasonable load distribution. Steering soft limit is provided to reduce impact. The overall fatigue life is up to 8,000h; The hanging is a tapered roller bearing and oscillating bearing composite structure, which makes it more suitable for bad operating condition.
- Size: 7450*2520*3234
- Place of Origin: China
- Brand Name: SDLG
- Model Number: LG938L
- Weight: 4800.000 kg
